• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239478

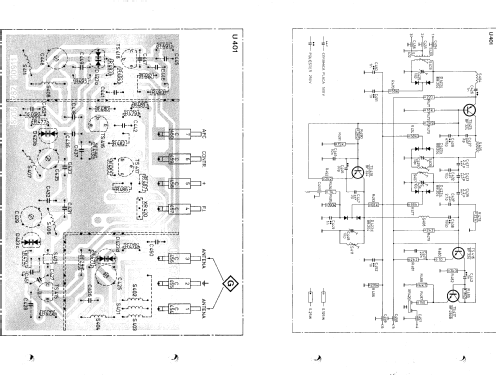

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 31

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

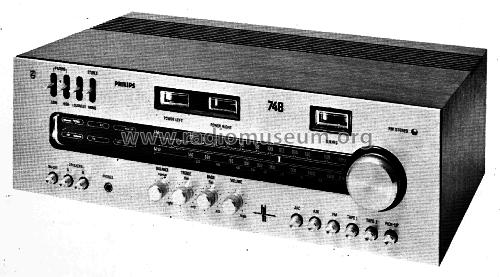

• Model: 06RH748 /00 /01 - Philips do Brasil S.A.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 305 x 160 mm / 19.7 x 12 x 6.3 inch

• Notes

• This receiver has been developed and produced by Philips in Piracicaba, São Paulo, Brazil.

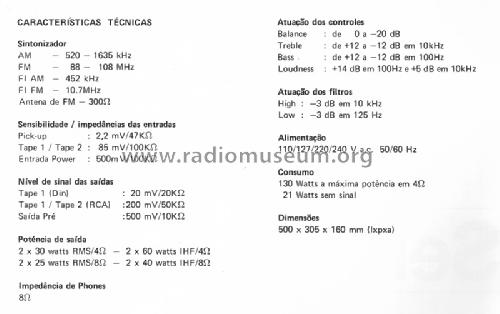

  Output power 60 W rms total (2 x 30 W rms) at 1% THD.

  Variants: /00 white aluminum front panel; /01 black aluminum front panel.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
