06RN346 /00 /03

Philips do Brasil S.A.

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 302135

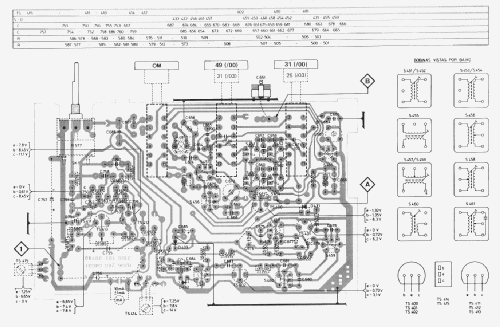

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 5.5 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 06RN346 /00 /03 - Philips do Brasil S.A.
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 178 x 44 x 92 mm / 7 x 1.7 x 3.6 inch
  • Notes

  • Car radio 06RN346 /00 /03
    Supply: 12 V negative chassis

    06RN346 /00:
    MW = 520 to 1630 kHz
    49m = 5.88 to 6.24 MHz
    31m = 9.35 to 9.8 MHz

    06RN346 /03
    MW = 520 to 1630 kHz
    31m = 9.35 to 9.8 MHz
    25m = 11.615 to 12 MHz

  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
