09RB358 /01

09RB358 /01; Philips Chilena S.A. (ID = 2082144) Radio 09RB358 /01; Philips Chilena S.A. (ID = 2082146) Radio
09RB358 /01; Philips Chilena S.A. (ID = 2082148) Radio 09RB358 /01; Philips Chilena S.A. (ID = 2082149) Radio
09RB358 /01; Philips Chilena S.A. (ID = 2082150) Radio
Use red slider bar for more.
09RB358 /01; Philips Chilena S.A. (ID = 2082144) Radio
Philips Chilena S.A.: 09RB358 /01 [Radio] ID = 2082144 1400x631
Select picture or schematic to display from thumbnails on the right and click for download.
For model 09RB358 /01, Philips Chilena S.A.:
Frente

Country:  Chile
Manufacturer / Brand:  Philips Chilena S.A.
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner

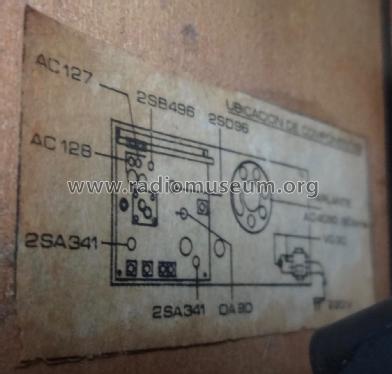

Semiconductors (the count is only for transistors) AC128 AC127 2SB496 2SD96 2SA341 2SA341
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 09RB358 /01 - Philips Chilena S.A.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 170 x 121 mm / 16.5 x 6.7 x 4.8 inch
Notes





Model page created by Maximiliano Herrada. See "Data change" for further contributors.
