103 AM-FM Stereo Tuner 22AH103 /00 /12 /15 /29; Philips Belgium (ID = 1621509) Radio
Philips Belgium: 103 AM-FM Stereo Tuner 22AH103 /00 /12 /15 /29 [Radio] ID = 1621509 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 103 AM-FM Stereo Tuner 22AH103 /00 /12 /15 /29, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1980 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 103 AM-FM Stereo Tuner 22AH103 /00 /12 /15 /29 - Philips Belgium Belgien
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 80 x 380 mm / 16.5 x 3.1 x 15 inch
Notes 3 Band Stereo Analog Tuner.
5 FM Pre Selection.
Made in Belgium.

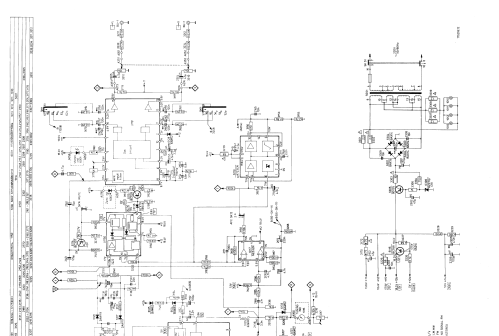

Literature/Schematics (4) -- Schematic

Model page created by Franz Scharner. See "Data change" for further contributors.
