10RL580/T15

10RL580/T15; Philips Finland - (ID = 1986215) Radio 10RL580/T15; Philips Finland - (ID = 1986216) Radio
10RL580/T15; Philips Finland - (ID = 1986217) Radio 10RL580/T15; Philips Finland - (ID = 1986788) Radio
Use red slider bar for more.

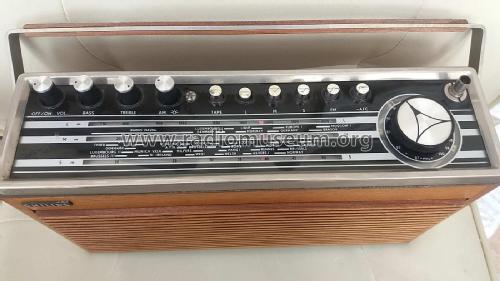

10RL580/T15; Philips Finland - (ID = 1986215) Radio
Philips Finland -: 10RL580/T15 [Radio] ID = 1986215 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10RL580/T15, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 10RL580/T15 - Philips Finland - see also
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch
Notes

Is similar to Philips Autoportable 66RL581, and the Philips 10RL570/15.
This model has round buttons the 570 has square buttons. Has Bass and Treble controls. Power sockets for fitting in car. Car aerial socket.




Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

Model page created by John Leach. See "Data change" for further contributors.
