121B

121B; Philips, Svenska AB, (ID = 1184556) Radio 121B; Philips, Svenska AB, (ID = 1184557) Radio
121B; Philips, Svenska AB, (ID = 1184558) Radio 121B; Philips, Svenska AB, (ID = 1184559) Radio
121B; Philips, Svenska AB, (ID = 1184560) Radio 121B; Philips, Svenska AB, (ID = 1184561) Radio
121B; Philips, Svenska AB, (ID = 1184562) Radio 121B; Philips, Svenska AB, (ID = 1184564) Radio
121B; Philips, Svenska AB, (ID = 1184565) Radio
Use red slider bar for more.
121B; Philips, Svenska AB, (ID = 1184556) Radio
Philips, Svenska AB,: 121B [Radio] ID = 1184556 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 121B, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner

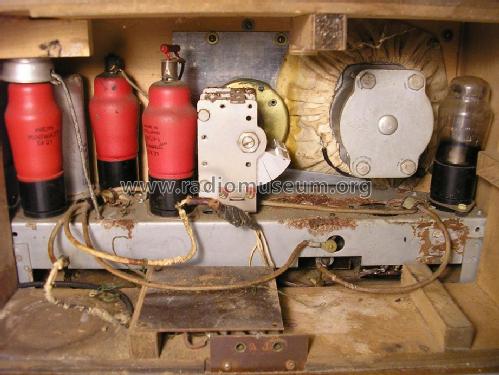

Valves / Tubes 4: DK21 DF22 DAC21 DL21
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details

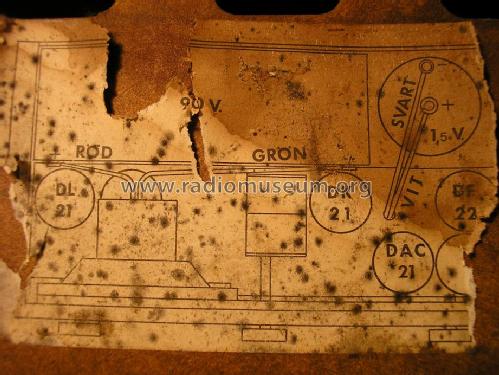

Power type and voltage Storage and/or dry batteries / 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: 121B - Philips, Svenska AB, Stockholm
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 342 x 207 x 190 mm / 13.5 x 8.1 x 7.5 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.
