15RB505 /00Z

15RB505 /00Z; Philips; Calcutta (ID = 2020410) Radio

15RB505 /00Z; Philips; Calcutta (ID = 2020411) Radio

15RB505 /00Z; Philips; Calcutta (ID = 2020412) Radio

15RB505 /00Z; Philips; Calcutta (ID = 2020413) Radio

15RB505 /00Z; Philips; Calcutta (ID = 2020414) Radio

15RB505 /00Z; Philips; Calcutta (ID = 2020415) Radio
15RB505 /00Z; Philips; Calcutta (ID = 2020409) Radio
Use red slider bar for more.
15RB505 /00Z; Philips; Calcutta (ID = 2020409) Radio
Philips; Calcutta: 15RB505 /00Z [Radio] ID = 2020409 1400x885

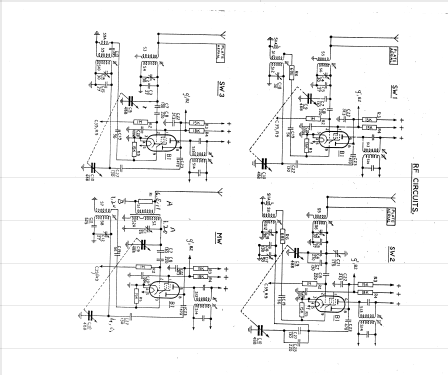

Select picture or schematic to display from thumbnails on the right and click for download.
For model 15RB505 /00Z, Philips; Calcutta:

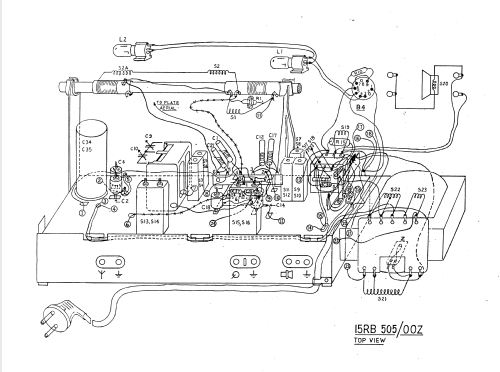

pic from serv doc, no other source available

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 ECL82 EZ80 EM84
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 205; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 15RB505 /00Z - Philips; Calcutta
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Indian made Philips radio.
Speaker type 2415 255 87005 (Z = 5 ohms).

Wave bands:
MW: 185 - 580 m
SW1: 12.3 - 20.3 m
SW2: 24.8 - 33.3 m
SW3: 37 - 100 m

Power consumption 45 W.

Mentioned in -- Original-techn. papers.

Model page created by Robert Kooijman. See "Data change" for further contributors.
