Prestige 15RB525 /00Z /11Z
Philips; India
- Country
- India
- Manufacturer / Brand
- Philips; India
- Year
- 1972/1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335148
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 205; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Prestige 15RB525 /00Z /11Z - Philips; India
- Shape
- Tablemodel, low profile (big size).
- Notes
-

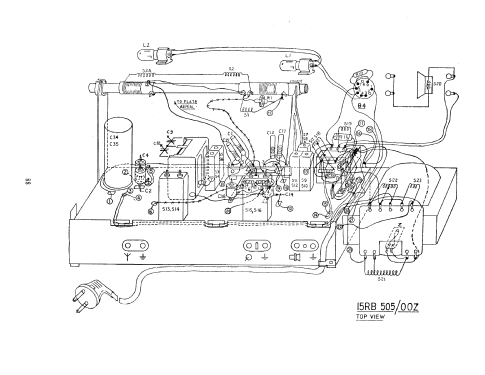

Version 15RB525 /00Z is similar to 15RB505 /00Z and 15RB525 /11Z is smiliar to 15RB525 /00Z, with the exception of a few changes in the parts list.
- Mentioned in
- - - Manufacturers Literature (Philips Service, Philips Circuits, Volume 3, 1971-1973)
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
