Beethoven 178

Beethoven 178; Philips Australia (ID = 2176326) Radio

Beethoven 178; Philips Australia (ID = 2176327) Radio

Beethoven 178; Philips Australia (ID = 2176328) Radio

Beethoven 178; Philips Australia (ID = 2176329) Radio

Beethoven 178; Philips Australia (ID = 2176330) Radio

Beethoven 178; Philips Australia (ID = 2176331) Radio
Beethoven 178; Philips Australia (ID = 2176319) Radio
Use red slider bar for more.
Beethoven 178; Philips Australia (ID = 2176319) Radio
Philips Australia: Beethoven 178 [Radio] ID = 2176319 500x475
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beethoven 178, Philips Australia:
Philips model 178 from service manual title page.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6AN7 6N8 EF86 12AT7 EM34 6M5 6M5 6BD7 6M5 5V4G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 6 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-230; 240-250 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Beethoven 178 - Philips Australia
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Separate amplifiers are used for the low and high audio frequencies. The record changer is a Philips type AG1000.

Price in first year of sale 235.00 AUS GNS

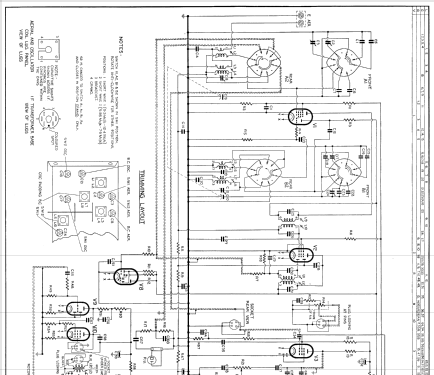

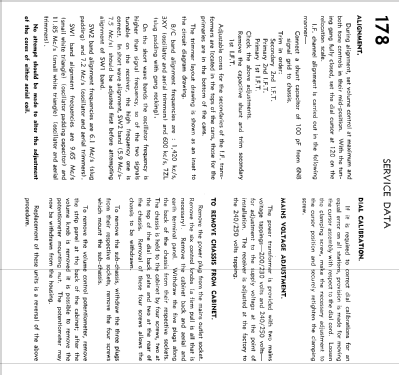

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Stuart Irwin. See "Data change" for further contributors.
