For model Beethoven 178A, Philips Australia:
Ebay au_232878789924

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1955–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6AN7 6N8 EF86 12AT7 EM34 6M5 6M5 6BD7 6M5 5V4G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 6 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-230; 240-250 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Beethoven 178A - Philips Australia
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Separate amplifiers are used for the low and high audio frequencies. The record changer is a Philips type AG1000.
Price in first year of sale 204.75 AUS £

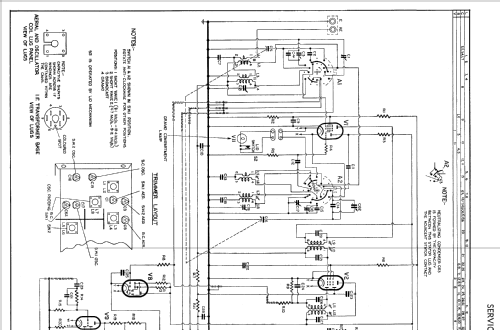

Circuit diagram reference Australian Official Radio Service Manual Vol. XIV
Mentioned in Mingay's Price Service

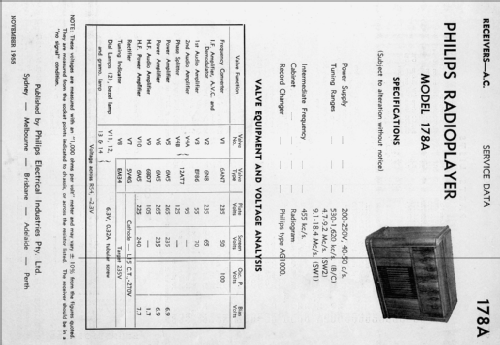

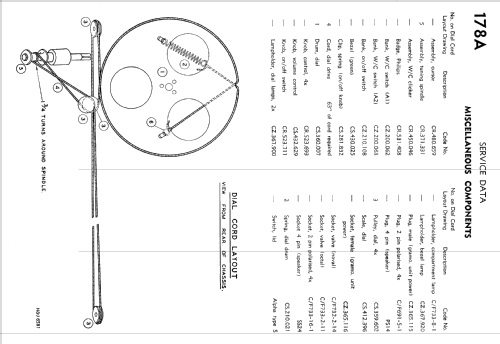

Literature/Schematics (1) - - Manufacturers Literature (Philips Radioplayer Service Data, Nov 1955.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 14, 1955, Page 258-260.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
