19RB344 /00Z /22Z; Philips Italy; (ID = 119572) Radio
Philips Italy;: 19RB344 /00Z /22Z [Radio] ID = 119572 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 19RB344 /00Z /22Z, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF194 BF495 BF194 BF194 TBA120 TAA611
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt

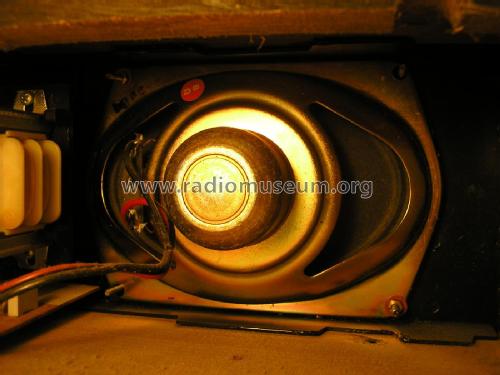

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 19RB344 /00Z /22Z - Philips Italy; Milano MI
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 460 x 125 x 140 mm / 18.1 x 4.9 x 5.5 inch
Source of data Radiokatalog Band 2, Ernst Erb

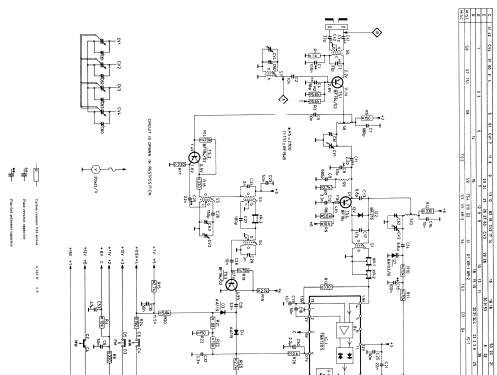

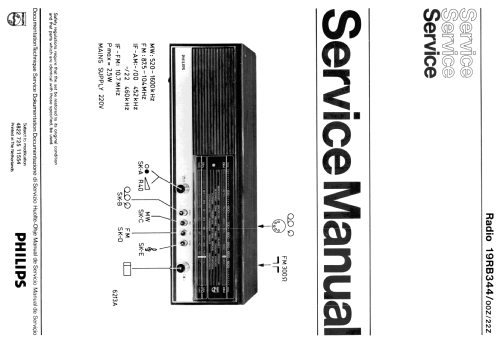

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
