21KX100A /04 Ch= K4

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1434177) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1434179) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1434180) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1434181) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 2059824) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 2059825) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 2059826) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 2059827) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 2059828) Television

21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 2059829) Television
21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429797) Television 21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429801) Television
21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429798) Television 21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 416472) Television
21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429802) Television 21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429803) Television
21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429804) Television 21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429805) Television
21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429806) Television 21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429807) Television
Use red slider bar for more.
21KX100A /04 Ch= K4; Philips; Eindhoven (ID = 1429797) Television
Philips; Eindhoven: 21KX100A /04 Ch= K4 [Television] ID = 1429797 933x1017

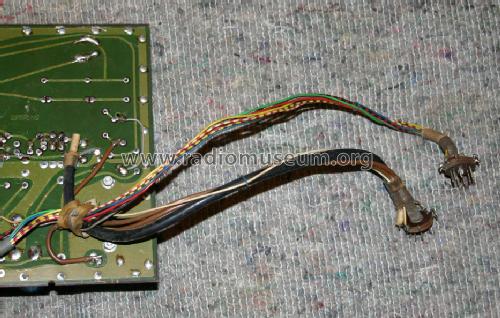

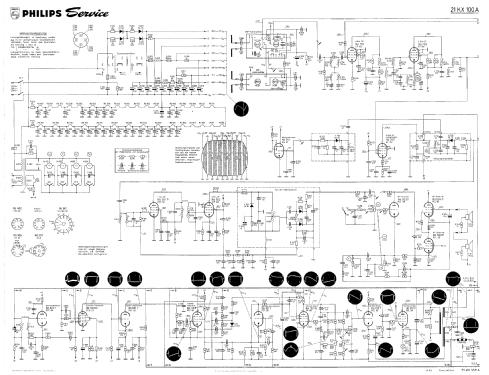

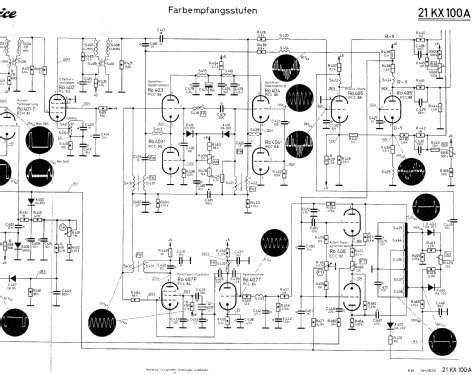

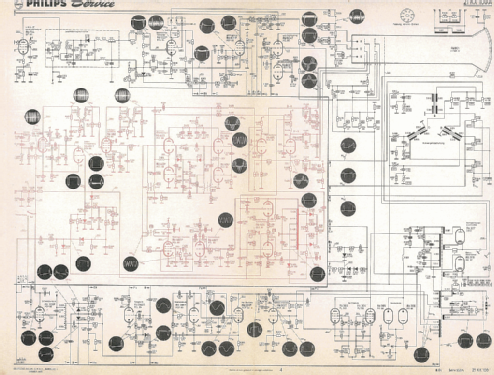

Select picture or schematic to display from thumbnails on the right and click for download.
For model 21KX100A /04 Ch= K4, Philips; Eindhoven (tubes international!); Miniwatt:
Eigenes Foto von Fremdgerät. Totalansicht von vorne.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 34: PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 EF184 PCF80 ECH83 PCC88 PCC88 PCC88 PCL84 PCL84 PL83 ECH81 PCF80 EF184 PCL86 ECC82 PF86 PCL85 PCL85 PCF80 PCF80 PCF80 PL500 PL500 PY88 PY88 DY87 3A3 21FBP22
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 210 -230 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 21KX100A /04 Ch= K4 - Philips; Eindhoven tubes
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 840 x 1020 x 710 mm / 33.1 x 40.2 x 28 inch
Notes

This television is for N.T.S.C norm. Very first Philips color TV prototype. Around 200 pcs. was made for test purpose. The chassis is also well known as the K4 type.
Many of the television sets were modified with an additional PAL-decoder, specially for research and development (Philips laboratories, Eindhoven).
Philips completely redesigned the horizontal transformer, because the first model often broke down.
There is a complete circuit description of the K4 (NTSC-version, about 136 book-pages!) in the following literature (german language):
Ing. W. Hartwich: Einführung in die Farbfernseh-Servicetechnik, Band 2: Schaltungstechnik und Service-Einstellungen. Philips Technische Bibliothek (N.V. Philips´ Gloeilampenfabrieken, Eindhoven, Niederlande) 1966


Net weight (2.2 lb = 1 kg) 72 kg / 158 lb 9.4 oz (158.59 lb)
Source of data - - Manufacturers Literature

Model page created by Juha Lahtinen Liljeroos. See "Data change" for further contributors.
