228B -15; Philips Electrical, (ID = 1856093) Radio
Philips Electrical,: 228B -15 [Radio] ID = 1856093 1400x1447
Select picture or schematic to display from thumbnails on the right and click for download.
For model 228B -15, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: FC2A VP2B_Mullard TDD2A PM22A
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 90 & 2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: 228B -15 - Philips Electrical, Lamps,
Material Leather / canvas / plastic - over other material

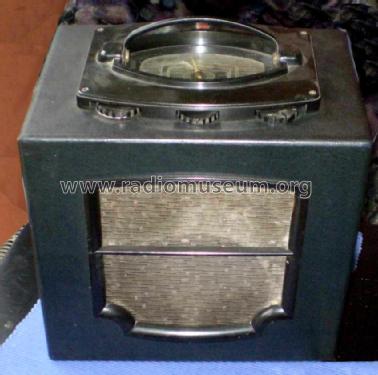

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 305 x 310 x 210 mm / 12 x 12.2 x 8.3 inch
Notes

Eingebaute Rahmenantenne, drehbarer Fuß an der Unterseite des Gerätes.

Vergleiche mit 228B (NL), 228B (D) und 225B (GB).

Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Mentioned in -- Collector info (Sammler)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
