22AH994 /28

22AH994 /28; Philips; Eindhoven (ID = 1322966) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322967) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322968) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322969) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322970) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322971) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322972) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322973) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322974) Radio

22AH994 /28; Philips; Eindhoven (ID = 1322975) Radio
22AH994 /28; Philips; Eindhoven (ID = 1319794) Radio
Use red slider bar for more.
22AH994 /28; Philips; Eindhoven (ID = 1319794) Radio
Philips; Eindhoven: 22AH994 /28 [Radio] ID = 1319794 860x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22AH994 /28, Philips; Eindhoven (tubes international!); Miniwatt:

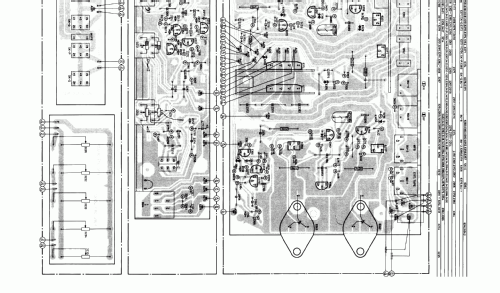

Picture from manual

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 53: BC548 BF494 BD137 BC559 BC549 BC558 BD313 BD314 BD138 BC638 BC546 BD677 BC547 BC557 BC338 µA723 TBA570 TDA1005 NE542 NE545
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Record Player + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (120 W max.)
from Radiomuseum.org Model: 22AH994 /28 - Philips; Eindhoven tubes
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 645 x 130 x 423 mm / 25.4 x 5.1 x 16.7 inch
Notes

Player type 22GC037.

Each semiconductor listed once.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 5007 models, 4189 with images and 3344 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
