BD138

Information - Help
ID = 36331

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Transistor   Power/Output
Identical to BD138
Similar Tubes
Normally replaceable-slightly different:
  2SA505 ; BC430 ; BD152 ; BD168 ; BD178 ; BD229 ; BD236 ; BD440 ; MC138 ; SJE293 ; КТ814
Other base and data slightly different:
  OC926 ; OC955 ; OC9566
First Source (s)
Aug.1969 : -- Collector info (Sammler)
Base Wires
Description

PNP silicon planar transistor intended as AF power amplifier.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 8 x 12 x 3 mm / 0.31 x 0.47 x 0.12 inch
Weight 3 g / 0.11 oz
Information source -- Collector info (Sammler)   KTT 1969/70, TTT Steidle 1981

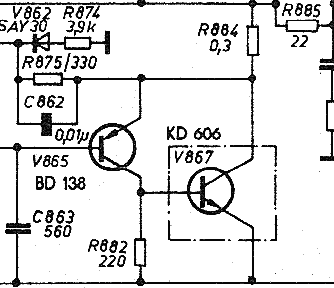

BD138: Radio Fernsehen Elektronik 5/82
Egon Strampe
to126_5.gif BD138: TVT 1979/80 ECA
Günther Stabe † 19.8.20
BD138: Valvo Transistoren, 1974
Anonymous 10 Collector
More ...
Usage in Models 1= 1969 ; 2= 1970?? ; 1= 1970? ; 1= 1970 ; 1= 1971?? ; 1= 1971? ; 11= 1971 ; 1= 1972?? ; 4= 1972? ; 1= 1972 ; 2= 1973?? ; 7= 1973 ; 2= 1974?? ; 4= 1974 ; 9= 1975?? ; 2= 1975? ; 2= 1975 ; 1= 1976 ; 1= 1978?? ; 1= 1978 ; 2= 1979? ; 4= 1979 ; 1= 1980?? ; 1= 1981? ; 1= 1982? ; 1= 1985?? ; 1= 1985 ; 1= 1987? ; 1= 1991 ; 1= 1992?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):69

Collection of

Peter Roggenhofer † 25.4.18 (A)
Marcello Astolfi (I)
Wilfried Hofmüller (A)
Michael Mischke (D)
Sándor Selyem-Tóth (H)
Jacky Parmentier (F)
Oskar Elm (D)
Karlheinz Fischer (D)


BD138
