22GP300

Philips Belgium (Belgien)

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Microphone or Pick-up element
  • Radiomuseum.org ID
  • 332802

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 22GP300 - Philips Belgium Belgien
  • Shape
  • Chassis only or for «building in»
  • Notes

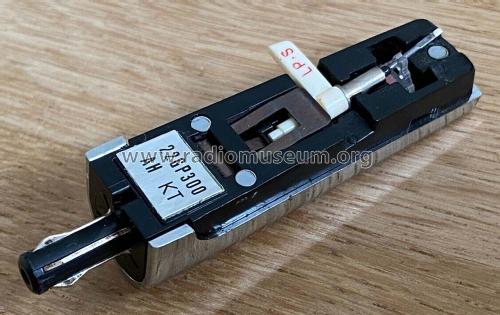

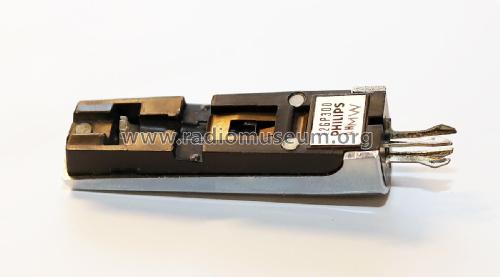

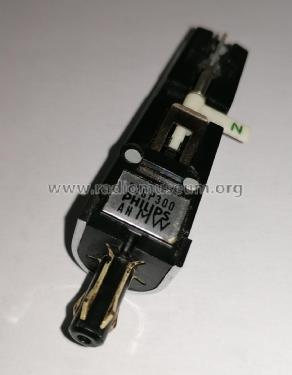

  • Stereophonic pick-up cartridge, with 5-pin connector, for 78 rpm and microgroove records.

    There is no direct replacement for this cartrigde type (in 1971).

    Replacement stylus type:
    4822 251 20002, sapphire, normal 75 µ / micro and stereo 18 µ, color marking: silver / black

  • Price in first year of sale
  • 20.00 DM
  • Mentioned in
  • - - Manufacturers Literature (Replacement list 1971)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Philips Service, 1969)
