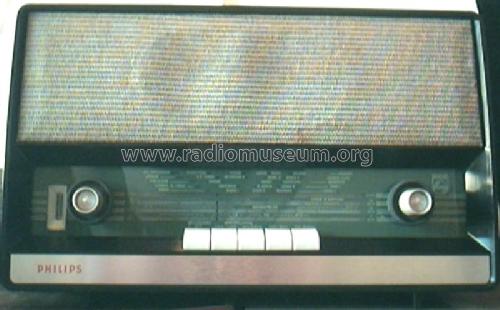

For model 22RB366 /35S, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC81 EL84 DM71 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90, 110, 127, 145, 190, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: 22RB366 /35S - Philips Portugal
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 225 x 190 mm / 14.2 x 8.9 x 7.5 inch
Notes MW , SW3 , SW2 , SW1

Model page created by Vitor Oliveira. See "Data change" for further contributors.
