22RH540

22RH540; Philips - Österreich (ID = 1076364) Ampl/Mixer

22RH540; Philips - Österreich (ID = 1076365) Ampl/Mixer
22RH540; Philips - Österreich (ID = 880955) Ampl/Mixer 22RH540; Philips - Österreich (ID = 880956) Ampl/Mixer
Use red slider bar for more.

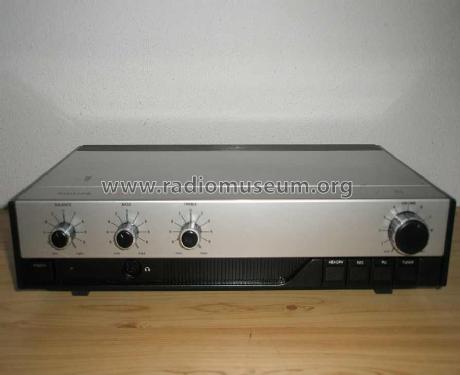

22RH540; Philips - Österreich (ID = 880955) Ampl/Mixer
Philips - Österreich: 22RH540 [Ampl/Mixer] ID = 880955 900x733
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RH540, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1972 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 22RH540 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 90 x 205 mm / 14.2 x 3.5 x 8.1 inch
Notes Input: tape recorder, phono, tuner.
Output: headphones, external loudspeakers.,
Literature/Schematics (1) - - Data from my own collection

Model page created by Dimitrios Karatasios. See "Data change" for further contributors.
