• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1968 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 160685

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

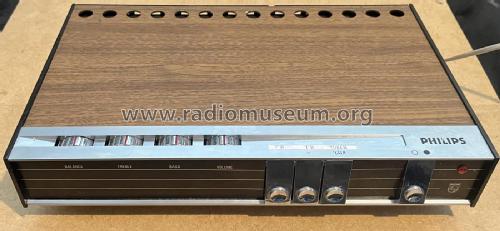

• Model: 22RH580 /00Z - Philips Belgium Belgien

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 335 x 75 x 210 mm / 13.2 x 3 x 8.3 inch

• Notes
• Ingressi: sintonizzatore, registratore, testina ceramica, testina a cristallo. Uscita: stereo 4 o 8 ohm.

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
