22RH690 /76Z

22RH690 /76Z; Philips Belgium (ID = 2252639) Radio 22RH690 /76Z; Philips Belgium (ID = 2252640) Radio
Use red slider bar for more.
22RH690 /76Z; Philips Belgium (ID = 2252639) Radio
Philips Belgium: 22RH690 /76Z [Radio] ID = 2252639 1329x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RH690 /76Z, Philips Belgium (Belgien):

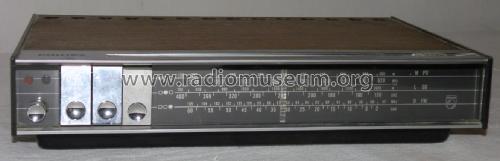

B_Philips_22RH690_vue de face_coll. William FAGUE

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 22RH690 /76Z - Philips Belgium Belgien
Material Wooden case
Shape Book-shelf unit.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Gidi Verheijen. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 458 models, 437 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
