• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241224

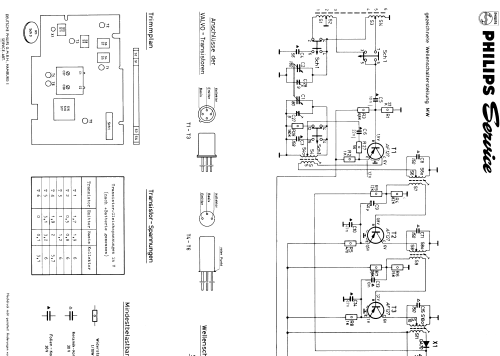

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF127 AF127 AF127 AC132 AC132 AC132 OA70

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 22RL160 /00B /00F /00L - Philips Belgium Belgien

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 142 x 92 x 37 mm / 5.6 x 3.6 x 1.5 inch

• Notes

• Available in 3 cabinet colors: /00B= gray, /00F= green, /00L= red
  AM portable radio with built-in ferroceptor:
  LW: 150 - 250 kHz.
  BC: 525 - 1622 kHz.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Radiomuseum Olen Museum. See "Data change" for further contributors.
