Dublette with ID=177991 and ID=177992

Dublette with ID=177991 and ID=177992; Philips Belgium (ID = 287316) Radio
Use red slider bar for more.
Dublette with ID=177991 and ID=177992; Philips Belgium (ID = 287316) Radio

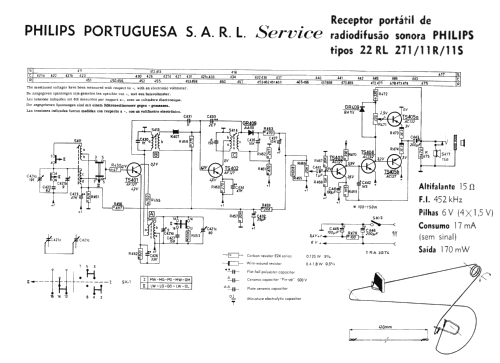

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 9999/9999 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF127 AF127 AC132 AC132 AC127 AC127 AA119 BA114
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Dublette with ID=177991 and ID=177992 - Philips Belgium Belgien
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 110 x 48 mm / 7.1 x 4.3 x 1.9 inch
Notes 2 Ausführungen: ../11R und ../11S
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
