22RL372

22RL372; Philips Italy; (ID = 1377126) Radio

22RL372; Philips Italy; (ID = 1377127) Radio

22RL372; Philips Italy; (ID = 1377128) Radio

22RL372; Philips Italy; (ID = 1377131) Radio

22RL372; Philips Italy; (ID = 1377133) Radio

22RL372; Philips Italy; (ID = 1377134) Radio

22RL372; Philips Italy; (ID = 1377135) Radio

22RL372; Philips Italy; (ID = 1377137) Radio

22RL372; Philips Italy; (ID = 1377139) Radio

22RL372; Philips Italy; (ID = 1377143) Radio
22RL372; Philips Italy; (ID = 1454105) Radio 22RL372; Philips Italy; (ID = 1377122) Radio
22RL372; Philips Italy; (ID = 1454108) Radio 22RL372; Philips Italy; (ID = 1454110) Radio
22RL372; Philips Italy; (ID = 1454111) Radio
Use red slider bar for more.
22RL372; Philips Italy; (ID = 1454105) Radio
Philips Italy;: 22RL372 [Radio] ID = 1454105 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RL372, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1967 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF124 AF125 or. AF124 AF125 AF125 AF125 AC126 AC127 AC128 AC127 AC128 BA102 AA119 BA114
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 4 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: 22RL372 - Philips Italy; Milano MI
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 263 x 141 x 66 mm / 10.4 x 5.6 x 2.6 inch
Notes Philips Italy 22RL372;
Produced in two versions:
../00 FM 87..108,5 MHz
../02 FM 87..104,5 MHz
BC/OM 525..1605 kHz, LW/OL 150..260 kHz.

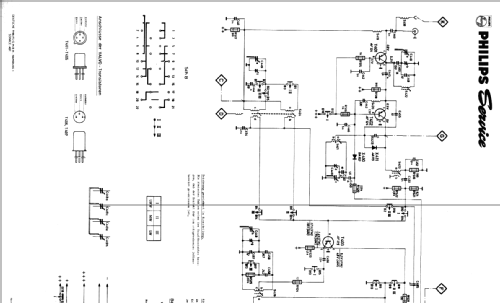

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Michele Dal Corso. See "Data change" for further contributors.
