• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321905

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF124 AF125 AF126 AF126 AF126 AC126 AC125 AC128 AC128 AA119 BA102

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

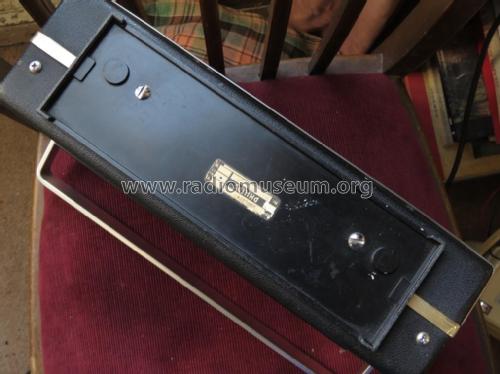

• Model: 22RL574 - Philips Belgium Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 306 x 204 x 90 mm / 12 x 8 x 3.5 inch

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.

• Other Models

• Here you find 577 models, 553 with images and 331 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
