22RN236

22RN236; Philips - Österreich (ID = 1077753) Car Radio

22RN236; Philips - Österreich (ID = 1077756) Car Radio

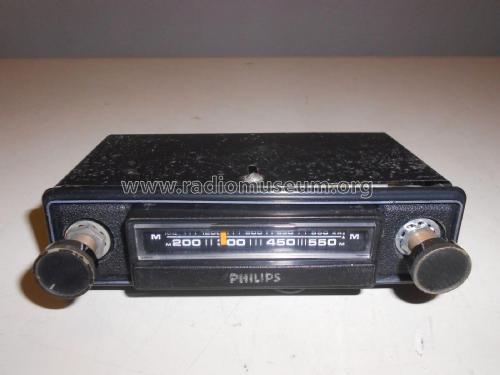

22RN236; Philips - Österreich (ID = 2168335) Car Radio 22RN236; Philips - Österreich (ID = 2168336) Car Radio

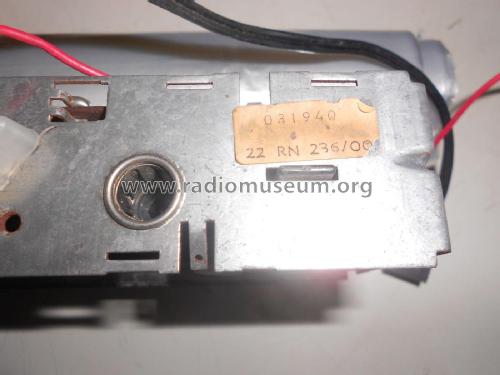

22RN236; Philips - Österreich (ID = 2168337) Car Radio 22RN236; Philips - Österreich (ID = 2168338) Car Radio

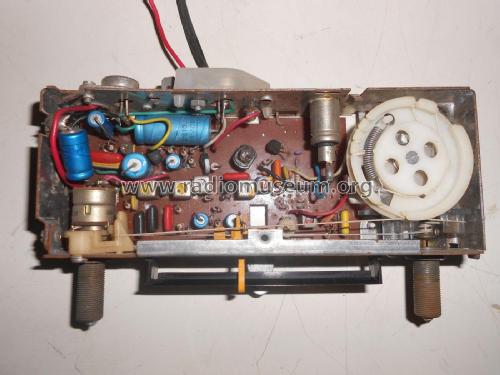

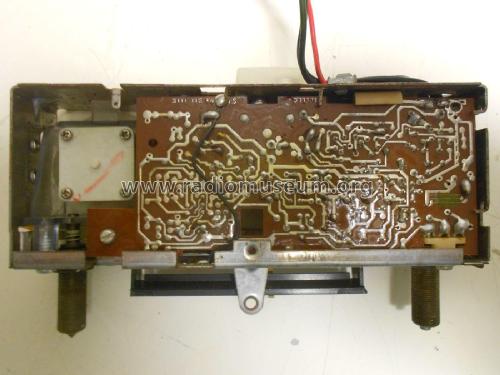

22RN236; Philips - Österreich (ID = 2168339) Car Radio 22RN236; Philips - Österreich (ID = 2168340) Car Radio
Use red slider bar for more.

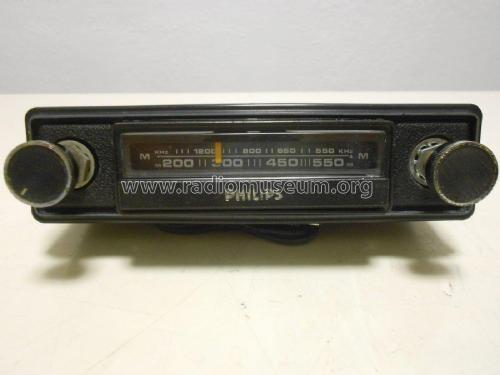

22RN236; Philips - Österreich (ID = 2168335) Car Radio
Philips - Österreich: 22RN236 [Car Radio] ID = 2168335 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RN236, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1970 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7:
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 22RN236 - Philips - Österreich
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 165 x 43 x 88 mm / 6.5 x 1.7 x 3.5 inch
Notes Presenti anche 6 diodi.

Model page created by Pasquale Baiocato. See "Data change" for further contributors.
