22RN698

22RN698; Philips - Österreich (ID = 1077757) Car Radio

22RN698; Philips - Österreich (ID = 1077758) Car Radio
22RN698; Philips - Österreich (ID = 1764721) Car Radio
Use red slider bar for more.

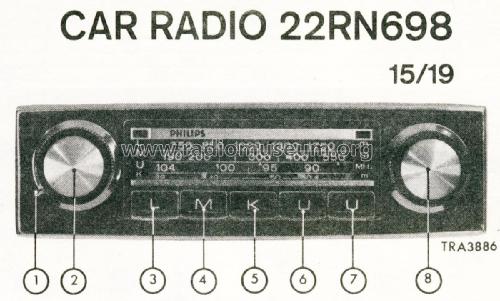

22RN698; Philips - Österreich (ID = 1764721) Car Radio
Philips - Österreich: 22RN698 [Car Radio] ID = 1764721 1200x724
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RN698, Philips - Österreich:
Q: Philips, Service-Unterlagen

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1973 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 19:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/470/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 22RN698 - Philips - Österreich
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 46 x 132 mm / 7 x 1.8 x 5.2 inch
Notes Autoradio con due canali audio ma non stereo,e con comando automatico di sintonia CAS ( = ATC )

Model page created by Pasquale Baiocato. See "Data change" for further contributors.
