23TX372A /00 /03 /05 /08
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1962 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 240169
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 25
- Valves / Tubes
- EF184 EF184 PCL82 PL84 PCC189 PCF86 EF183 EF183 EF184 PCF80 PCL84 ECC82 PCF80 PCF80 PL36 PY88 DY87 ECC82 ECH83 ECC82 PF86 PCL85 PC86 PC86 AW59-91
- Number of Transistors
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 23TX372A /00 /03 /05 /08 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 690 x 490 x 400 mm / 27.2 x 19.3 x 15.7 inch
- Notes
-
- Transformerless audio output stage.
- 5 standard receiver.
- Type of loudspeaker: 1 x AD3800AM.
- VHF channels: E2-E11; F6; F8a.
- UHF 470-862 MHz.
- Remote control unit AT6320-03.
The technical service manual doesn't specify if all 4 submodels have UHF. With other types, the letter "B" in the suffixes indicates the presence of an UHF tuner. "B" is not present here but the manual and schematics show an UHF tuner.
- Mentioned in

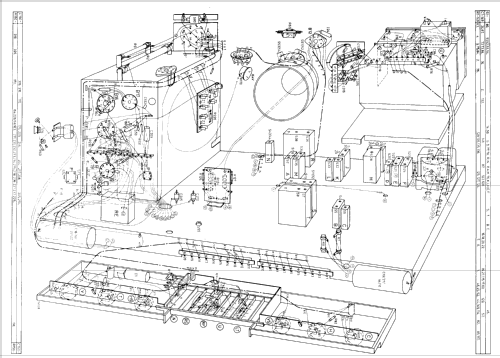

- -- Original-techn. papers.
- Author
- Model page created by Radiomuseum Olen Museum. See "Data change" for further contributors.
