For model 23TX380A /86, Philips; Eindhoven (tubes international!); Miniwatt:
NL_Philips_23TX380A/86_vue côté droit_coll. William FAGUE

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1962 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 26: EF184 EF184 PCL86 PCL85 PCC189 PCF86 EF183 EF183 EF184 PCF80 PCL84 ECC82 PCF80 ECH83 PCF80 PL500 PY88 DY87 ECH83 PCF80 PF86 PCL85 ECC82 PC88 PC86 AW59-91
Main principle Superheterodyne (common); 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 23TX380A /86 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 640 x 540 x 430 mm / 25.2 x 21.3 x 16.9 inch
Notes
  • Transformerless audio output stage.
  • Type of loudspeaker: 1 x AD3725A/02.
  • VHF channels: (tuner A3 273 20): E2-E4, E6-E11, F7-F8, F12.
  • UHF (tuner A3 263 77): 470-862 MHz.
  • Remote control unit AT6320-03.
Source of data -- Original-techn. papers.

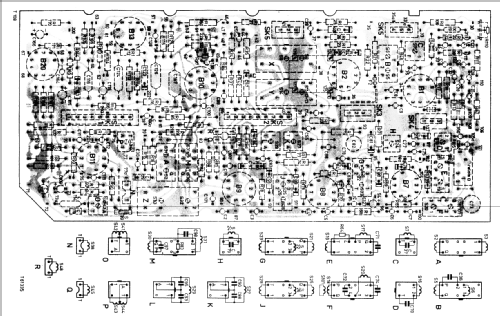

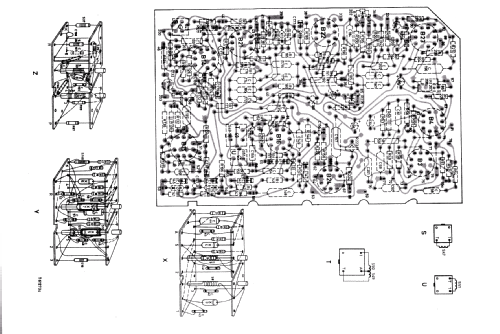

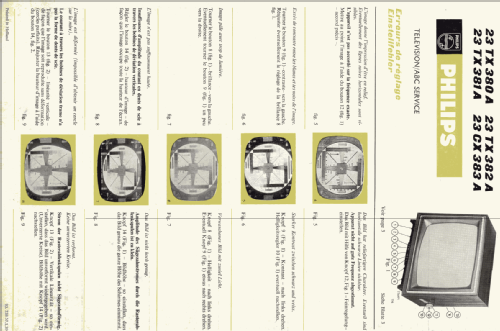

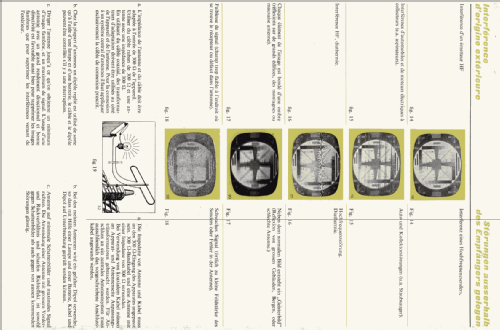

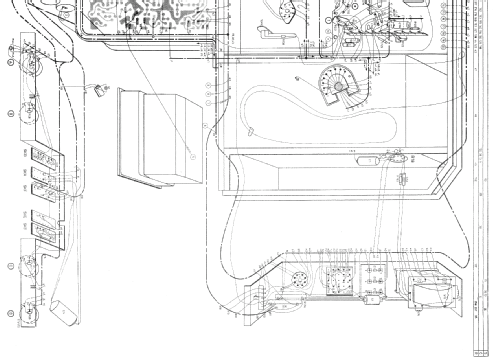

Literature/Schematics (1) Service Manual

Model page created by Dirk Taekels. See "Data change" for further contributors.
