• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117291

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• E442 E442 E415 C443 506

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 155 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: 2511 - Philips Italy; Milano MI

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 550 x 290 x 240 mm / 21.7 x 11.4 x 9.4 inch

• Notes

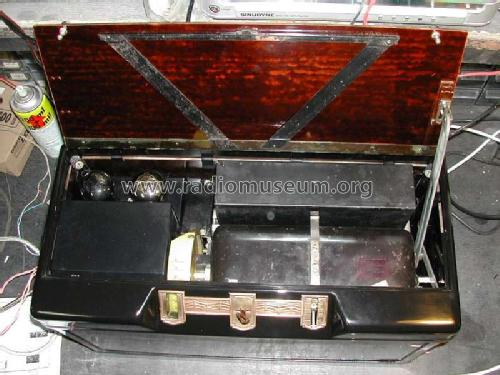

• Mobile: struttura in metallo con pannelli in philite.
  Case is made by metal and philite.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
