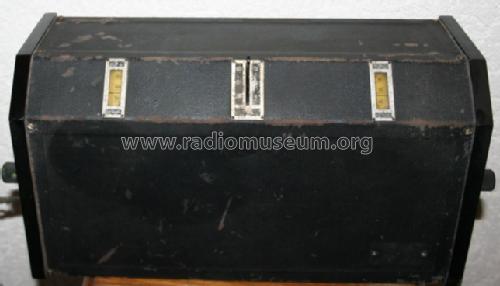

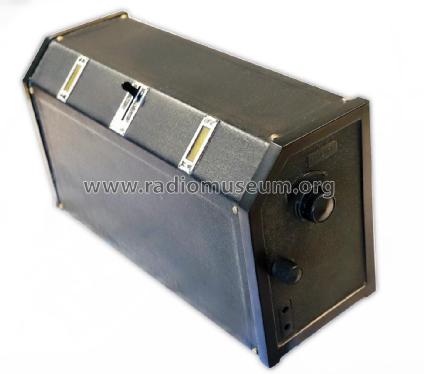

2514; Philips Radios - (ID = 398246) Radio
Philips Radios -: 2514 [Radio] ID = 398246 644x369
Select picture or schematic to display from thumbnails on the right and click for download.

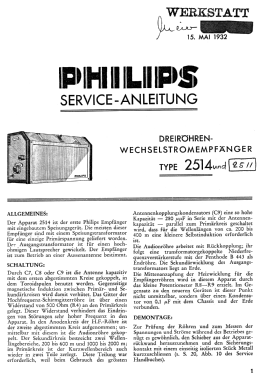

For model 2514, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1928/1929 Category: Broadcast Receiver - or past WW2 Tuner

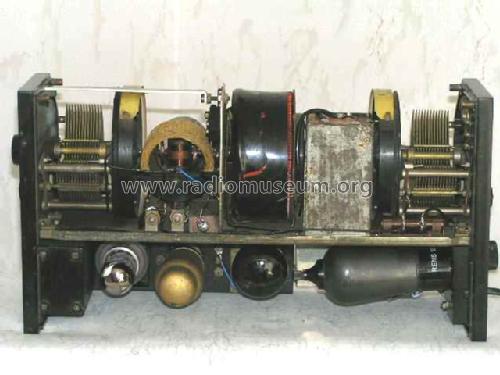

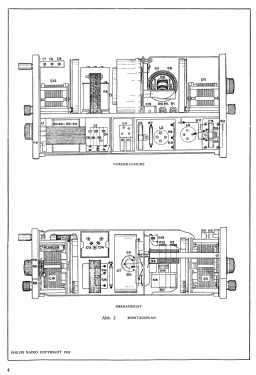

Valves / Tubes 4: E442_4pin E415_4pin B443_4pin 2506 or 506K
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)

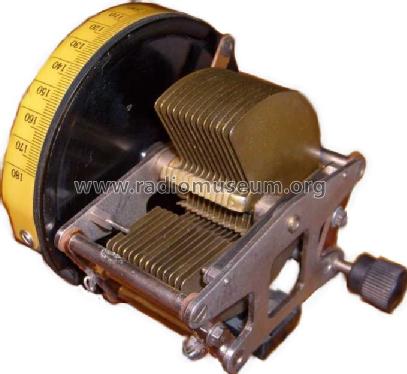

Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 103-253 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 2514 - Philips Radios - Deutschland
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 310 x 180 x 140 mm / 12.2 x 7.1 x 5.5 inch
Notes

The original tube line up of Philips model 2514 comes with rectifier 2506, but the indirect heater was unreliable so Philips stopped the production in 1929 and made the 506K as a replacement. Most books only mention this replacement instead of the original rectifier.

There were 3 possible power transformers available with this model:

  • type I : 111, 118, 127, 225, 240 Volt.
  • type II : 196, 210, 225, 240, 253 Volt.
  • type with only 1 voltage at choice of customer: 103, 110, 118, 127, 135, 143, 155, 196, 210, 222, 240, 253.

Bis zum Abschluss eines Gerätevertrages zwischen Telefunken und Philips (24. November 1931) war es Philips nicht erlaubt Rundfunkgeräte in Deutschland herzustellen. Philips-Geräte die bis dann in Deutschland verkauft wurden, sind in den Niederlanden hergestellt worden. Lorenz hat in diesen Jahren aber einige Philips-Modelle (wie Paladin) ohne Röhren importiert und mit Telefunken-Röhren in Deutschland verkauft.

Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in Les Radio PHILIPS de collection


All listed radios etc. from Philips Radios - Deutschland
Here you find 2481 models, 2194 with images and 1497 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radios -: 2514
Threads: 1 | Posts: 3
Hits: 2632     Replies: 2
philips: 2514;
Franco Forlani
20.Sep.10
  1

Salve, questa radio ha un interruttore generale? Grazie.

Giorgio Costa
21.Sep.10
  2

La leva posta al centro oltre alle funzioni di cambio gamma,funziona anche da interruttore generale.Poni molta attenzione alla tensione di alimentazione in quanto ne ho visti diverse con tensioni di alimentazione differenti.

Saluti

.



Franco Forlani
21.Sep.10
  3

mille grazie per la cortese risposta: l'avevo immaginato, ma ero in dubbio che non selezionasse una gamma ulteriore.
