• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13189

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• B442 B415 or B424 B543 1904

• Main principle
• TRF without regeneration; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110/150/220/240 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (4 magnet poles). / Ø 30 cm = 11.8 inch

• Power out
• 1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

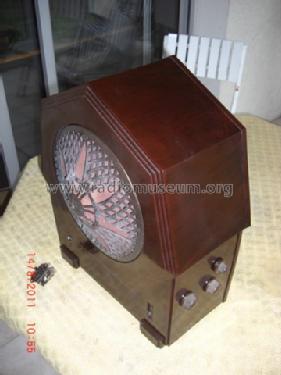

• Model: 2636 - Philips; Eindhoven tubes

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 0 x 480 x 0 mm / 0 x 18.9 x 0 inch

• Price in first year of sale
• 275.00 Hfl

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original-techn. papers.
