263-2
Philips Canada
- Country
- Canada
- Manufacturer / Brand
- Philips Canada
- Year
- 1957 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299655

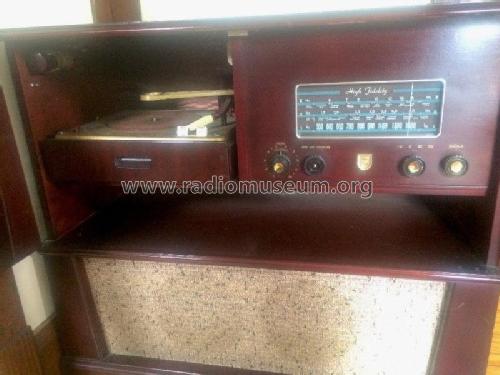

from a kijiji ad
from a kijiji ad
from a kijiji ad
from a kijiji ad
from a kijiji ad
from a kijiji ad
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 263-2 - Philips Canada
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 36 x 30 x 18 inch / 914 x 762 x 457 mm
- Notes
-
Covers standard broadcast and 1.8-5 MHz and 6-16 MHz shortwave. Built in 3-speed record changer. Similar schematic to Philips model P263. For 25 or 60 Hz depending on nameplate rating.
- Author
- Model page created by Steve Valeriote. See "Data change" for further contributors.
