For model 2802, Philips; Eindhoven (tubes international!); Miniwatt:
The complete set

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1928–1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: A442 A414 A415 or B424 B443
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 4 & 150 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 2802 - Philips; Eindhoven tubes
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 310 x 200 x 130 mm / 12.2 x 7.9 x 5.1 inch
Notes

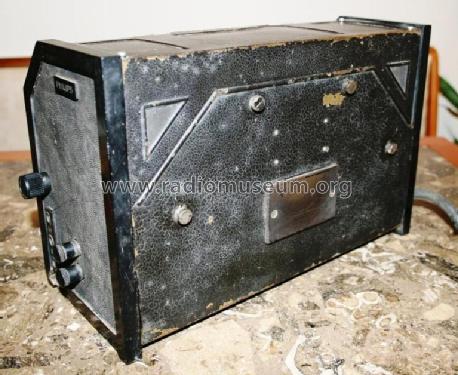

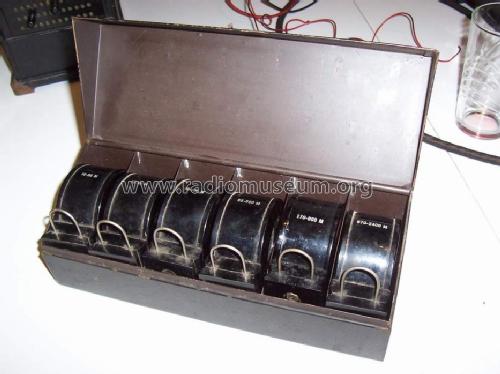

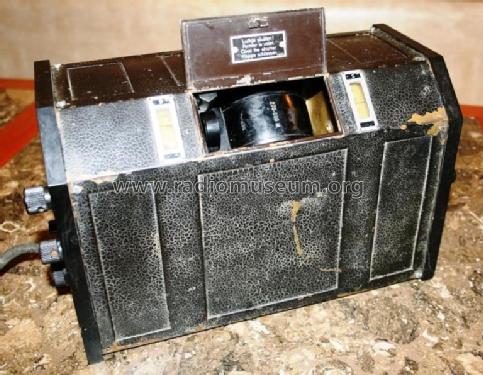

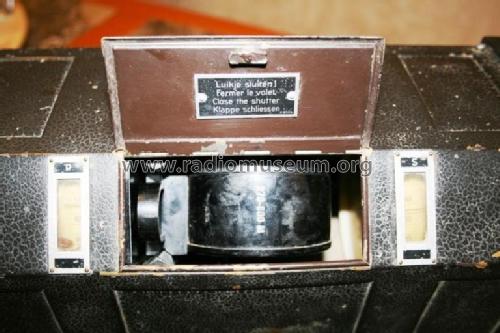

The Philips model 2802 is similar to the type 2501 but instead of the lid the type 2501 has a four position slide switch. The type 2802 receives 2400 - 10 m with plug in coils - which are kept in a separate box. Other possible tubes are A414K or B442, A415, B442 and B443. Tuning is accomplished by a single knob on the right hand side, with other controls also on the ends of the cabinet. A lid in the top centre opens up to allow the insertion of each plug-in coil. Aperiodic rf amplifier.

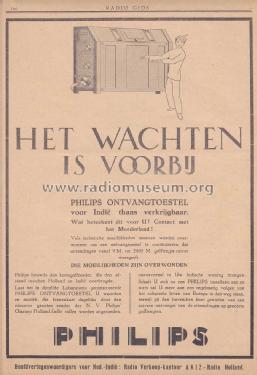

This model was specially designed for use in the former Dutch colony "Nederlands Indië" (now Indonesia).

See also the AC mains operated version Philips 2801.

Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 270.00 Hfl
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Mentioned in Les Radio PHILIPS de collection
