291U/15

291U/15; Philips Electrical, (ID = 424781) Radio

291U/15; Philips Electrical, (ID = 424782) Radio

291U/15; Philips Electrical, (ID = 545931) Radio

291U/15; Philips Electrical, (ID = 545932) Radio

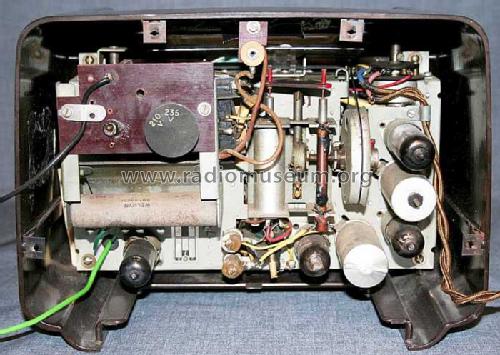

291U/15; Philips Electrical, (ID = 414074) Radio 291U/15; Philips Electrical, (ID = 414075) Radio
291U/15; Philips Electrical, (ID = 414076) Radio
Use red slider bar for more.

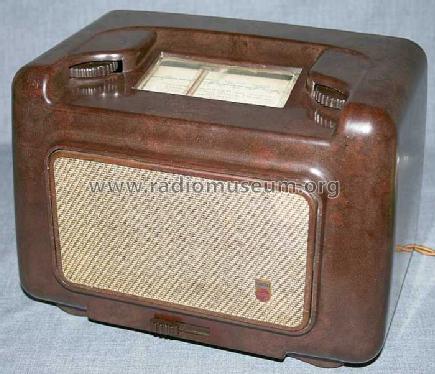

291U/15; Philips Electrical, (ID = 414074) Radio
Philips Electrical,: 291U/15 [Radio] ID = 414074 700x603
Select picture or schematic to display from thumbnails on the right and click for download.
For model 291U/15, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH42 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 470 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 100-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 291U/15 - Philips Electrical, Lamps,
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 11 x 8 x 7 inch / 279 x 203 x 178 mm
Notes Set also sold as Mullard model MUS271.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Price in first year of sale 11.00 GBP
Source of data Radio! Radio!
Literature/Schematics (1) Trader Sheet 948

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
