• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142382

• Number of Tubes
• 8

• Valves / Tubes
• EF8 ECH3 EF9 EAB1 EM4 EF6 EL3 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

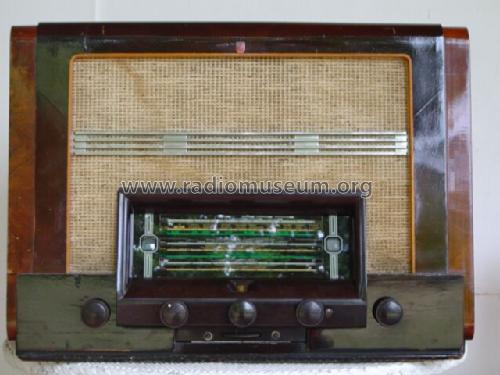

• Model: 316X - Philips; Eindhoven tubes

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 610 x 440 x 300 mm / 24 x 17.3 x 11.8 inch

• Notes
• Wave Bands: MW:110-570m, SW1:46-148m, SW2:13.6-47m. Band spread on 13, 16, 20, 25 and 30m.

• Net weight (2.2 lb = 1 kg)
• 18.9 kg / 41 lb 10.1 oz (41.63 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Bruno Gandolfo-Canepa. See "Data change" for further contributors.
