320A-16; Philips - Schweiz (ID = 435379) Radio
Philips - Schweiz: 320A-16 [Radio] ID = 435379 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 320A-16, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF9 EBC3 EL3 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19.5 cm = 7.7 inch
Power out
from Radiomuseum.org Model: 320A-16 - Philips - Schweiz
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 494 x 231 x 220 mm / 19.4 x 9.1 x 8.7 inch
Notes

LS=9636

Price in first year of sale 225.00 SFr
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

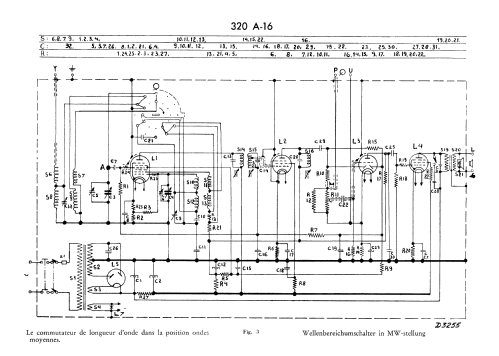

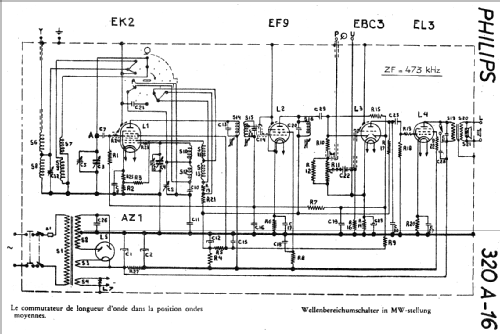

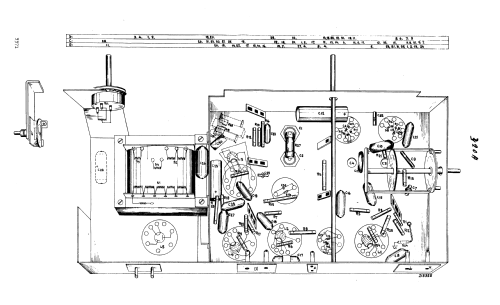

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.

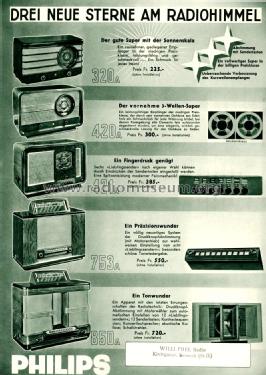

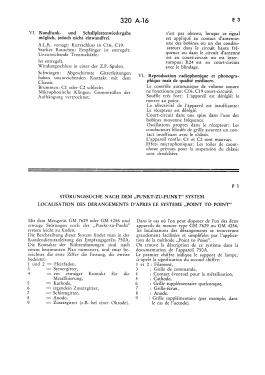

Literature/Schematics (3) Philips Folder for 1938/1939.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
