32V

32V; Philips; Budapest (ID = 234577) Radio
32V; Philips; Budapest (ID = 474056) Radio 32V; Philips; Budapest (ID = 144957) Radio
32V; Philips; Budapest (ID = 144958) Radio 32V; Philips; Budapest (ID = 144959) Radio
32V; Philips; Budapest (ID = 780027) Radio 32V; Philips; Budapest (ID = 144956) Radio
32V; Philips; Budapest (ID = 780028) Radio 32V; Philips; Budapest (ID = 1699716) Radio
32V; Philips; Budapest (ID = 1699717) Radio 32V; Philips; Budapest (ID = 1699718) Radio
Use red slider bar for more.
32V; Philips; Budapest (ID = 474056) Radio
Philips; Budapest: 32V [Radio] ID = 474056 744x571

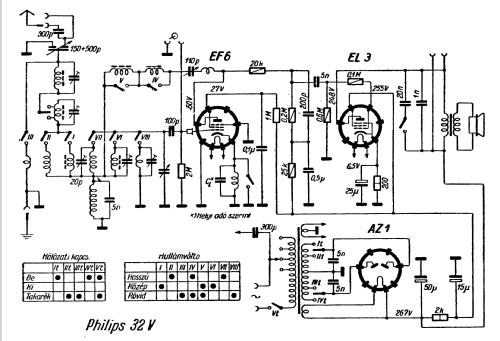

Select picture or schematic to display from thumbnails on the right and click for download.
For model 32V, Philips; Budapest:
A magyar rádiózás története.

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EF6 EL3 AZ1
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 32V - Philips; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 300 x 0 mm / 16.9 x 11.8 x 0 inch
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
