342A

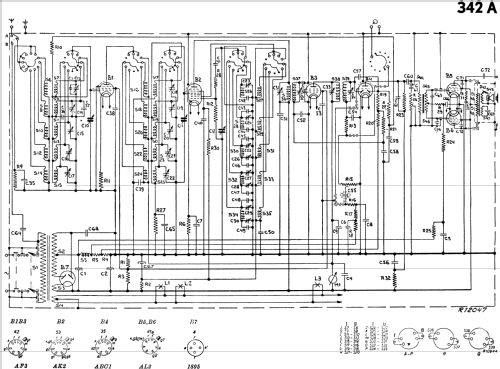

342A; Philips; Eindhoven (ID = 809855) Radio

342A; Philips; Eindhoven (ID = 809856) Radio
342A; Philips; Eindhoven (ID = 220076) Radio 342A; Philips; Eindhoven (ID = 220080) Radio
342A; Philips; Eindhoven (ID = 220079) Radio 342A; Philips; Eindhoven (ID = 220077) Radio
342A; Philips; Eindhoven (ID = 220081) Radio 342A; Philips; Eindhoven (ID = 1318765) Radio
342A; Philips; Eindhoven (ID = 1570586) Radio
Use red slider bar for more.
342A; Philips; Eindhoven (ID = 220076) Radio
Philips; Eindhoven: 342A [Radio] ID = 220076 598x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 342A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: AF3 AK2 AF3 ABC1 AL2 1805 AL2
Main principle Superheterodyne (common); ZF/IF 475 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 342A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes multi-inductance receiving apparatus
Source of data -- Collector info (Sammler)

Model page created by Marcel Luik. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4863 models, 4078 with images and 3271 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: 342A
Threads: 1 | Posts: 3
Hits: 5037     Replies: 2
philips: PHILIPS radio 342A (342 A);
Meyer Rochwerger
25.Mar.07
  1 Dear colleagues,
I got here an exemplar of this model, that needs a lot of service.
I wonder if someone has a digitalyzed copy of the service manual in order to correct all the "modifications" made on it.
It's missing the tunning indicator and the tuning knobs (I think that is a two pieces set)
Any information will be wellcome.
Thanks in advance.
Meyer
Maitiu Standun
25.Mar.07
  2 hello meyer ,ive put ur philips radio 342a ,a nd a picture of a television set on legs keeps coming out ?? i wonder if your radio is a south american varient of some other dutch or europeen origonal design, could u post a picture of the set to the radio model page here and someone might recognise it , bddijkman[A*T]home.nl  is a web site you can contact for knobs , dials, speaker cloths, and back boards , for philips sets ,ben dijkman speaks english , regards maitiu
Maitiu Standun
25.Mar.07
  3 sorry meyer , if you click on  ' to the model ', just ove r your own email here you will get pictures of the 342a regards maitiu,

Philips; Eindhoven: 342A
End of forum contributions about this model
