For model Microphone capsule typ 4210, Philips; Eindhoven (tubes international!); Miniwatt:
Gerät steht im Museum für Kommunikation Bern.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1932 ? perfect model Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage Batteries / addl. power jack
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Microphone capsule typ 4210 - Philips; Eindhoven tubes
Material Various materials
Shape Miscellaneous shapes - described under notes.
Notes

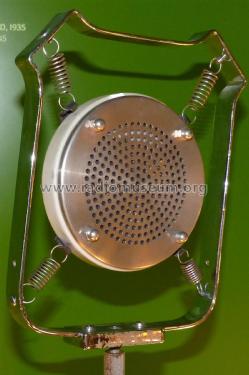

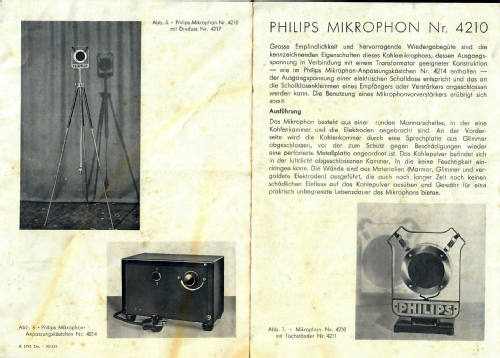

Philips Carbon Microphone Capsule Typ 4210, hold by four springs in a metal frame shaped like the early Philips logo. See also viarious types of microphone holders like typ 2411 or typ 4216 (Bankettstativ) or Philips tripod typ 2417. Or equipment like the typ 4214 "Philips Mirophon-Anpassungskästchen".

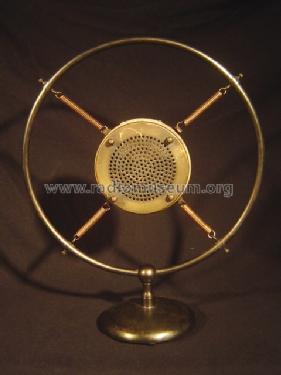

On this model page you see also different means of microphone holders for typ 2410.

Model page created by Paulo Figueiredo. See "Data change" for further contributors.
