436AN

436AN ; Philips USA (ID = 317774) Radio 436AN ; Philips USA (ID = 317775) Radio
436AN ; Philips USA (ID = 317776) Radio 436AN ; Philips USA (ID = 317777) Radio
436AN ; Philips USA (ID = 317778) Radio 436AN ; Philips USA (ID = 1941252) Radio
436AN ; Philips USA (ID = 1941253) Radio 436AN ; Philips USA (ID = 1941254) Radio
436AN ; Philips USA (ID = 1941255) Radio
Use red slider bar for more.
436AN ; Philips USA (ID = 317774) Radio

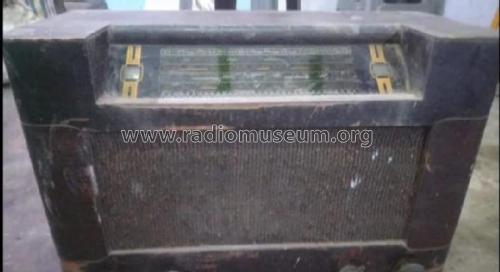

Philips USA: 436AN [Radio] ID = 317774 550x428
Select picture or schematic to display from thumbnails on the right and click for download.
For model 436AN, Philips USA:
from original owner family Herr Frederick Niemeier

Country:  United States of America (USA)
Manufacturer / Brand:  Philips USA
Year: 1941 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SG7 6SA7 6SK7 6SQ7 6U5 6V6 6X5
schematic requested
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out
from Radiomuseum.org Model: 436AN - Philips USA
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 19.5 x 13 x 9.1 inch / 495 x 330 x 231 mm
Notes The radio has continuous coverage from 10 Meters through 557 Meters in 5 wave bands.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data - - Data from my own collection

Model page created by Robert Sarbell. See "Data change" for further contributors.



All listed radios etc. from Philips USA
Here you find 35 models, 32 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips USA: 436AN
Threads: 1 | Posts: 1
Hits: 1109     Replies: 0
philips: 436AN
Hans-Peter Dohmen
14.Jan.16
  1

Bei der Instandsetzung meines 436AN konnte ich feststellen, das die Schaltungen denen der Modelle Philips 389AN bzw. 595AN benutzt werden können.
