440A-16

440A-16; Philips - Schweiz (ID = 19154) Radio

440A-16; Philips - Schweiz (ID = 19155) Radio
440A-16; Philips - Schweiz (ID = 193646) Radio 440A-16; Philips - Schweiz (ID = 203702) Radio
440A-16; Philips - Schweiz (ID = 193648) Radio
Use red slider bar for more.
440A-16; Philips - Schweiz (ID = 193646) Radio
Philips - Schweiz: 440A-16 [Radio] ID = 193646 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 440A-16, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH3 EF9 EBC3 EL3 EM1 AZ1
Main principle Superheterodyne (common); ZF/IF 473 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 440A-16 - Philips - Schweiz
Material Wooden case
Dimensions (WHD) 510 x 310 x 200 mm / 20.1 x 12.2 x 7.9 inch
Notes Thermosicherung. Die Schaltung ist fast identisch mit der des 434 A. Ungewöhnlich großer Koppelkondensator ( 0,27 Mikrofarad ).
Net weight (2.2 lb = 1 kg) 10.6 kg / 23 lb 5.6 oz (23.348 lb)
Price in first year of sale 320.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

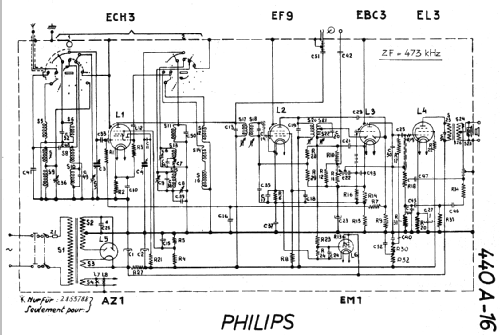

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
