462A

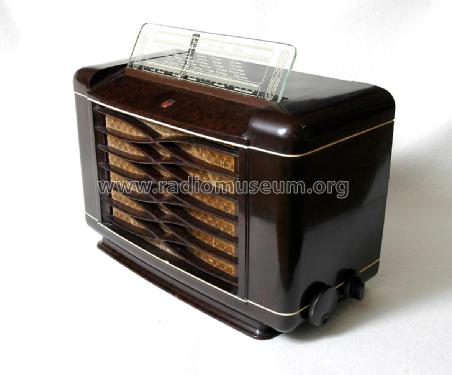

Philips Electrical,: 462A [Radio] ID = 1618724 900x680
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1947 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH21 ECH21 EBL21 AZ31 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz |
|---|---|

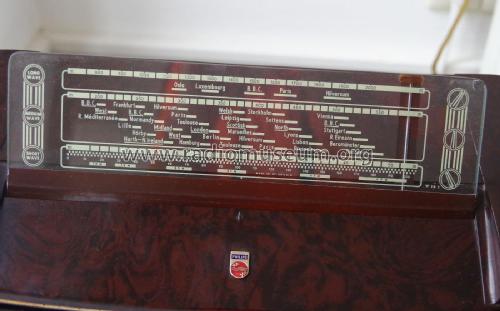

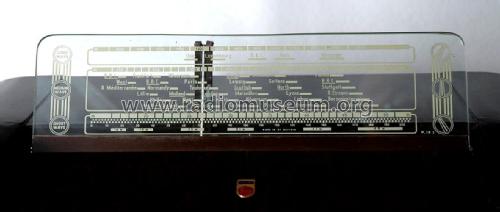

| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) |

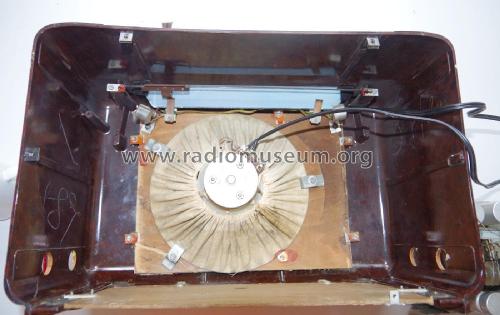

| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm |
| Power out | |
| from Radiomuseum.org | Model: 462A - Philips Electrical, Lamps, |

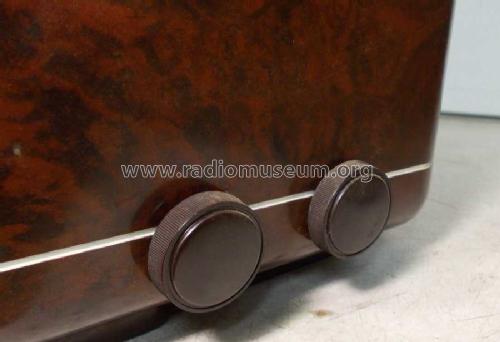

| Material | Bakelite case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 16.75 x 13.25 x 8 inch / 425 x 337 x 203 mm |
| Source of data | Radio! Radio! |
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
