For model 470A, Philips; Eindhoven (tubes international!); Miniwatt:
Philips Type 470A

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 EF9 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
Power out
from Radiomuseum.org Model: 470A - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 285 x 220 mm / 18.9 x 11.2 x 8.7 inch
Notes
3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 198 - 585 m.
  • SW: 16,7 - 51 m.
Tuning scale light bulbs type: 8045D (6,3V, 320mA).
Loudspeaker Philips type 9636. Tonecontrol. Connectors for second loudspeaker and for pick-up.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 89.00 Hfl
Collectors' prices

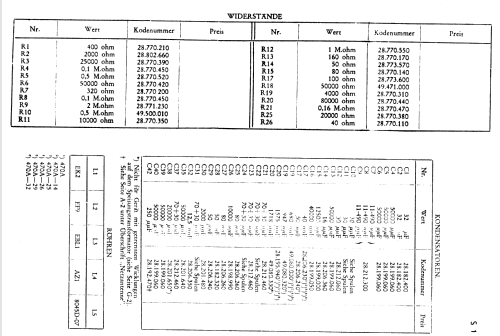

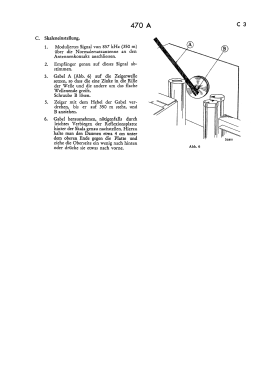

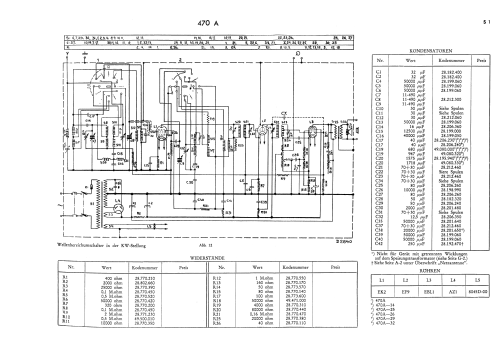

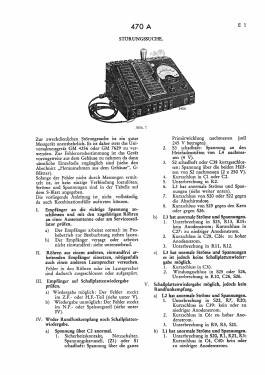

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
