472B

472B; Philips Finland - (ID = 962301) Radio 472B; Philips Finland - (ID = 962304) Radio
472B; Philips Finland - (ID = 962305) Radio 472B; Philips Finland - (ID = 962306) Radio
472B; Philips Finland - (ID = 962308) Radio 472B; Philips Finland - (ID = 962309) Radio
472B; Philips Finland - (ID = 962310) Radio 472B; Philips Finland - (ID = 962311) Radio
Use red slider bar for more.
472B; Philips Finland - (ID = 962301) Radio
Philips Finland -: 472B [Radio] ID = 962301 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 472B, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK21 DF21 DAC21 DL21
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details

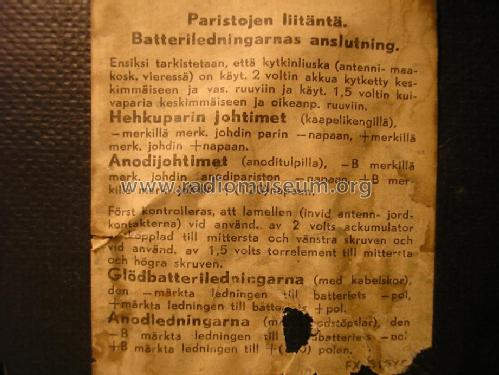

Power type and voltage Storage and/or dry batteries / 1,5-2 & 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 472B - Philips Finland - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 520 x 335 x 250 mm / 20.5 x 13.2 x 9.8 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 156 models, 144 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
