• Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 183349

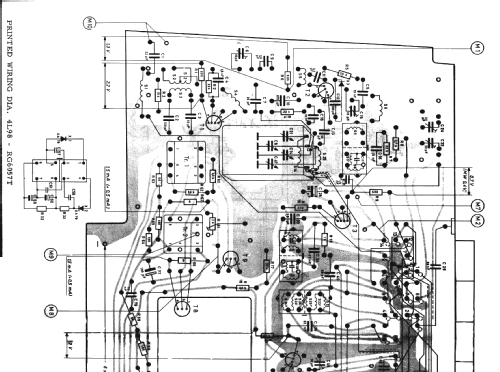

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Storage and/or dry batteries / 6x1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 4-L-98 - Philips Canada
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 13 x 8.5 x 4.5 inch / 330 x 216 x 114 mm
  • Net weight (2.2 lb = 1 kg)
  • 6.5 lb (6 lb 8 oz) / 2.951 kg
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
