Superottodina (Super Ottodina) 523A

Superottodina 523A; Philips Italy; (ID = 751634) Radio
Superottodina 523A; Philips Italy; (ID = 1955926) Radio Superottodina 523A; Philips Italy; (ID = 1955928) Radio
Superottodina 523A; Philips Italy; (ID = 1955927) Radio Superottodina 523A; Philips Italy; (ID = 1955930) Radio
Superottodina 523A; Philips Italy; (ID = 1955925) Radio Superottodina 523A; Philips Italy; (ID = 1955929) Radio
Superottodina 523A; Philips Italy; (ID = 1955932) Radio Superottodina 523A; Philips Italy; (ID = 1217078) Radio
Superottodina 523A; Philips Italy; (ID = 124278) Radio Superottodina 523A; Philips Italy; (ID = 551944) Radio
Use red slider bar for more.

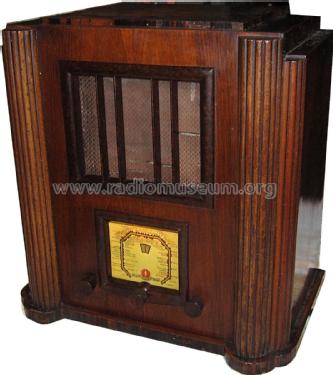

Superottodina 523A; Philips Italy; (ID = 1955926) Radio
Philips Italy;: Superottodina 523A [Radio] ID = 1955926 1068x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superottodina (Super Ottodina) 523A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK1 AF2 E444 E443H 506
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 155; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Superottodina 523A - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 430 x 440 x 280 mm / 16.9 x 17.3 x 11 inch
Notes Philips Superottodina 523.
Price in first year of sale 895.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
