525A output E443H

• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174123

• Picture
• Schematics

Previous Next

Previous Next

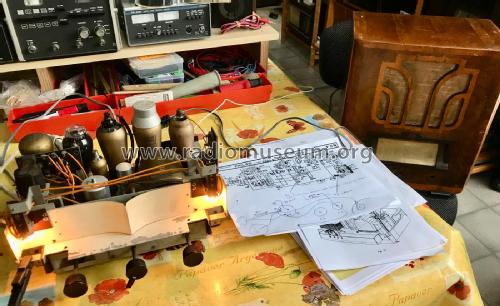

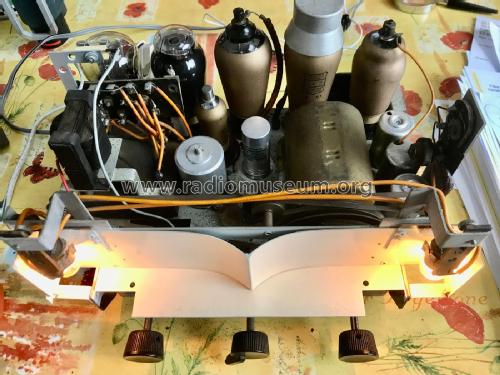

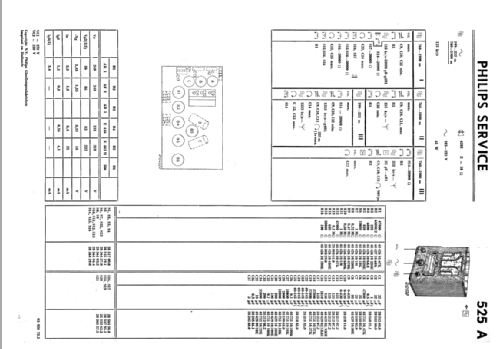

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AK1 AF2 AB1 E446 E443H 1823 or 506

• Main principle
• Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

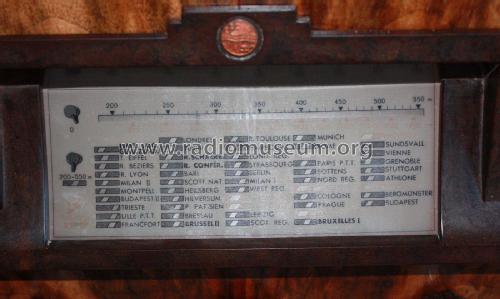

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 525A [output E443H] - Philips Belgium Belgien

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 577 models, 553 with images and 331 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Belgium (Belgien)
