525A output E443H
Use red slider bar for more.
Philips Ibérica,: 525A [Radio] ID = 114964 344x388
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1934/1935 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: AK1 AF2 AB1 E446 E443H 506 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 103-253 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 3.1 W (unknown quality) |
| from Radiomuseum.org | Model: 525A [output E443H] - Philips Ibérica, COPRESA, |
| Material | Wooden case |
| Shape | Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges. |
| Price in first year of sale | 725.00 Pesetas |
| Mentioned in | Campaña Renovación - cuadro de reemplazos 1955 |

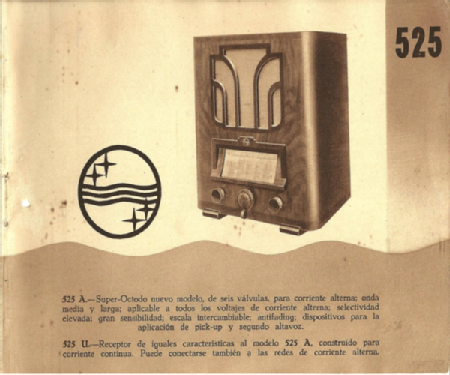

| Literature/Schematics (1) | -- Original prospect or advert |
Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
