580A

580A; Philips Electrical, (ID = 424651) Radio

580A; Philips Electrical, (ID = 424649) Radio

580A; Philips Electrical, (ID = 424650) Radio

580A; Philips Electrical, (ID = 1015731) Radio

580A; Philips Electrical, (ID = 1015732) Radio
580A; Philips Electrical, (ID = 1228353) Radio 580A; Philips Electrical, (ID = 211733) Radio
580A; Philips Electrical, (ID = 1228354) Radio 580A; Philips Electrical, (ID = 1785636) Radio
Use red slider bar for more.

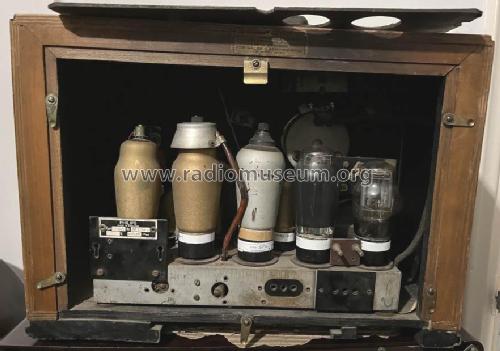

580A; Philips Electrical, (ID = 1228353) Radio
Philips Electrical,: 580A [Radio] ID = 1228353 700x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model 580A, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: FC4 VP4A 2D4A SP4 PM24M 1821
Main principle Superheterodyne (common); ZF/IF 115 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 580A - Philips Electrical, Lamps,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16 x 11.5 x 7.75 inch / 406 x 292 x 197 mm
Source of data Radio! Radio!
Literature/Schematics (1) -- Schematic
Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (540)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
