617L

617L; Philips Electrical, (ID = 1315151) Radio

617L; Philips Electrical, (ID = 1315152) Radio

617L; Philips Electrical, (ID = 1315153) Radio

617L; Philips Electrical, (ID = 1315154) Radio
617L; Philips Electrical, (ID = 2443668) Radio
Use red slider bar for more.
617L; Philips Electrical, (ID = 2443668) Radio
Philips Electrical,: 617L [Radio] ID = 2443668 488x418
Select picture or schematic to display from thumbnails on the right and click for download.
For model 617L, Philips Electrical, Lamps, Industrial - Miniwatt; London:
Bild aus Servicedoku

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 CBL1 CY1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 617L - Philips Electrical, Lamps,
Price in first year of sale 12.00 GBP

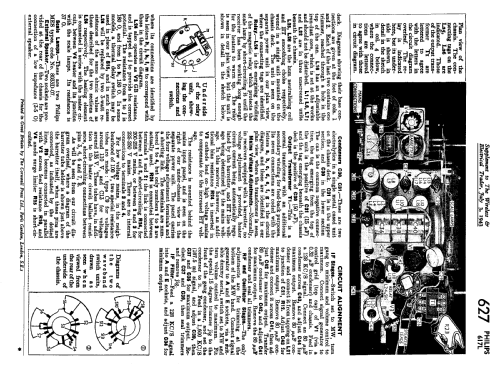

Literature/Schematics (1) Trader sheet 627

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Philips Electrical, Lamps, Industrial - Miniwatt; London
Here you find 418 models, 283 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
